1 - Architecture

1.1 - Api Components

Design

Overview architecture of ksctl

Managed Cluster creation & deletion

High Available Cluster creation & deletion

Architecture change to event based for much more capabilities

2 - Getting Started

Installation & Uninstallation Instructions

Ksctl CLI

Lets begin with installation of the tools their are various method

Single command method

curl -sfL https://get.ksctl.com | python3 -

• Operating System:
• Linux
• MacOS

bash <(curl -s https://raw.githubusercontent.com/ksctl/cli/main/scripts/uninstall.sh)

zsh <(curl -s https://raw.githubusercontent.com/ksctl/cli/main/scripts/uninstall.sh)

From Source Code

• Operating System:
• Linux/MacOS

make install_linux

# macOS on M1
make install_macos

# macOS on INTEL
make install_macos_intel

# For uninstalling
make uninstall

3 - Cloud Provider

3.1 - Amazon Web Services

How these credentials are used by ksctl

1. Environment Variables

export AWS_ACCESS_KEY_ID=""
export AWS_SECRET_ACCESS_KEY=""

2. Using command line

ksctl cred

Current Features

Cluster features

Highly Available cluster

clusters which are managed by the user not by cloud provider

you can choose between k3s and kubeadm as your bootstrap tool

custom components being used

• Etcd database VM
• HAProxy loadbalancer VM for controlplane nodes
• controlplane VMs
• workerplane VMs

Managed Cluster Elastic Kubernetes Service

we provision Roles ksctl-* 2 for each cluster:

• ksctl-<clustername>-wp-role for the EKS NodePool
• ksctl-<clustername>-cp-role for the EKS controlplane

we utilize the iam:AssumeRole to assume the role and create the cluster

Policies aka permissions for the user

here is the policy and role which we are using

1. iam-role-full-access(Custom Policy)

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor6",
            "Effect": "Allow",
            "Action": [
                "iam:CreateInstanceProfile",
                "iam:DeleteInstanceProfile",
                "iam:GetRole",
                "iam:GetInstanceProfile",
                "iam:RemoveRoleFromInstanceProfile",
                "iam:CreateRole",
                "iam:DeleteRole",
                "iam:AttachRolePolicy",
                "iam:PutRolePolicy",
                "iam:ListInstanceProfiles",
                "iam:AddRoleToInstanceProfile",
                "iam:ListInstanceProfilesForRole",
                "iam:PassRole",
                "iam:CreateServiceLinkedRole",
                "iam:DetachRolePolicy",
                "iam:DeleteRolePolicy",
                "iam:DeleteServiceLinkedRole",
                "iam:GetRolePolicy",
                "iam:SetSecurityTokenServicePreferences"
            ],
            "Resource": [
                "arn:aws:iam::*:role/ksctl-*",
                "arn:aws:iam::*:instance-profile/*"
            ]
        }
    ]
}

2. eks-full-access(Custom Policy)

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "VisualEditor0",
            "Effect": "Allow",
            "Action": [
                "eks:ListNodegroups",
                "eks:ListClusters",
                "eks:*"
            ],
            "Resource": "*"
        }
    ]
}

3. AmazonEC2FullAccess(Aws)
4. IAMReadOnlyAccess(Aws)

ksctl switch aws --name here-you-go --region us-east-1

3.2 - Azure

Azure Subscription ID

subscription id using your subscription

Azure Tenant ID

Azure Dashboard

Azure Dashboard contains all the credentials required

lets get the tenant id from the Azure

Azure Client ID

it represents the id of app created

Azure Client Secret

it represents the secret associated with the app in order to use it

Assign Role to your app

head over to subscriptions page and click Access Control (IAM) select the Role Assignment and then click Add > Add Role Assignment create a new role and when selecting the identity specify the name of the app Here you can customize the role this app has

How these credentials are used by ksctl

1. Environment Variables

export AZURE_TENANT_ID=""
export AZURE_SUBSCRIPTION_ID=""
export AZURE_CLIENT_ID=""
export AZURE_CLIENT_SECRET=""

2. Using command line

ksctl cred

Current Features

Cluster features

Highly Available cluster

clusters which are managed by the user not by cloud provider

you can choose between k3s and kubeadm as your bootstrap tool

custom components being used

• Etcd database VM
• HAProxy loadbalancer VM for controlplane nodes
• controlplane VMs
• workerplane VMs

Managed Cluster

clusters which are managed by the cloud provider

Other capabilities

Create, Update, Delete, Switch

3.3 - Civo

Getting credentials

under settings look for the profile

copy the credentials

How to add credentials to ksctl

1. Environment Variables

export CIVO_TOKEN=""

2. Using command line

ksctl cred

Current Features

Cluster features

Highly Available cluster

clusters which are managed by the user not by cloud provider

you can choose between k3s and kubeadm as your bootstrap tool

custom components being used

• Etcd database VM
• HAProxy loadbalancer instance for controlplane nodes
• controlplane instances
• workerplane instances

Managed Cluster

clusters which are managed by the cloud provider

Other capabilities

Create, Update, Delete, Switch

3.4 - Google Cloud Platform

3.5 - Local

Current features

currently using Kind Kubernetes in Docker

4 - Reference

CLI Command Reference

Docs are available now in cli repo Here are the links for the documentation files

CLI Root Command

4.1 - ksctl

ksctl

CLI tool for managing multiple K8s clusters

Synopsis

Ksctl ascii [logo]

Options

  -h, --help     help for ksctl
  -t, --toggle   Help message for toggle

SEE ALSO

• ksctl connect-cluster - Use to switch between clusters
• ksctl create-cluster - Use to create a cluster
• ksctl cred - Login to your Cloud-provider Credentials
• ksctl delete-cluster - Use to delete a cluster
• ksctl get-clusters - Use to get clusters
• ksctl info-cluster - Use to info cluster
• ksctl self-update - update the ksctl cli
• ksctl version - Print the version number of ksctl

Auto generated by spf13/cobra on 2-Dec-2024

4.2 - ksctl_connect-cluster

ksctl connect-cluster

Use to switch between clusters

Synopsis

Ksctl ascii [logo]

ksctl connect-cluster [flags]

Examples

ksctl connect-context --provider civo --name <clustername> --region <region>
ksctl connect --provider civo --name <clustername> --region <region>
ksctl switch --provider civo --name <clustername> --region <region>
ksctl connect --provider civo --name <clustername> --region <region>
ksctl connect-context --provider local --name <clustername>
ksctl connect-context --provider azure --name <clustername> --region <region>
ksctl connect-context --provider ha-civo --name <clustername> --region <region>
ksctl connect-context --provider ha-azure --name <clustername> --region <region>
ksctl connect-context --provider ha-aws --name <clustername> --region <region>
ksctl connect-context --provider aws --name <clustername> --region <region>

	For Storage specific

ksctl connect-context -s store-local -p civo -n <clustername> -r <region>
ksctl connect-context -s external-store-mongodb -p civo -n <clustername> -r <region>

Options

      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for connect-cluster
  -m, --mode string            Mode of access can be shell or k9s or none
  -n, --name string            Cluster Name (default "demo")
  -p, --provider string        Provider
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output

SEE ALSO

• ksctl - CLI tool for managing multiple K8s clusters

Auto generated by spf13/cobra on 2-Dec-2024

4.3 - ksctl_create-cluster

ksctl create-cluster

Use to create a cluster

Synopsis

Ksctl ascii [logo]

Examples

ksctl create --help


Options

  -h, --help   help for create-cluster

SEE ALSO

• ksctl - CLI tool for managing multiple K8s clusters
• ksctl create-cluster aws - Use to create a EKS cluster in Aws
• ksctl create-cluster azure - Use to create a AKS cluster in Azure
• ksctl create-cluster civo - Use to create a Civo managed k3s cluster
• ksctl create-cluster ha-aws - Use to create a self-managed Highly Available cluster on AWS
• ksctl create-cluster ha-azure - Use to create a self-managed Highly-Available cluster on Azure
• ksctl create-cluster ha-civo - Use to create a self-managed Highly Available cluster on Civo
• ksctl create-cluster local - Use to create a kind cluster

Auto generated by spf13/cobra on 2-Dec-2024

4.4 - ksctl_create-cluster_aws

ksctl create-cluster aws

Use to create a EKS cluster in Aws

Synopsis

Ksctl ascii [logo]

ksctl create-cluster aws [flags]

Examples

ksctl create-cluster aws -n demo -r ap-south-1 -s store-local --nodeSizeMP t2.micro --noMP 3

Options

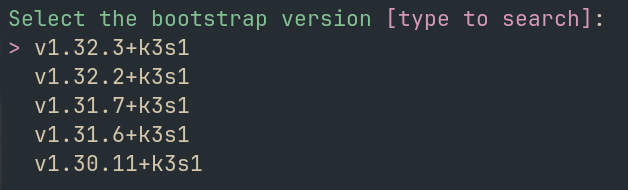

      --bootstrap string       Kubernetes Bootstrap

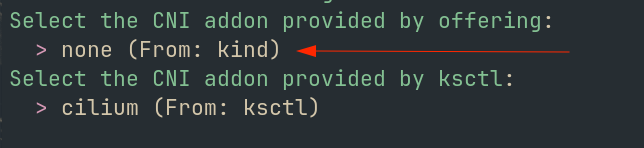

      --cni string             CNI
      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for aws
  -n, --name string            Cluster Name (default "demo")
      --noMP int               Number of Managed Nodes (default -1)
      --nodeSizeMP string      Node size of managed cluster nodes
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
      --version string         Kubernetes Version
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl create-cluster - Use to create a cluster

Auto generated by spf13/cobra on 2-Dec-2024

4.5 - ksctl_create-cluster_azure

ksctl create-cluster azure

Use to create a AKS cluster in Azure

Synopsis

Ksctl ascii [logo]

ksctl create-cluster azure [flags]

Examples

ksctl create-cluster azure -n demo -r eastus -s store-local --nodeSizeMP Standard_DS2_v2 --noMP 3

Options

      --bootstrap string       Kubernetes Bootstrap
      --cni string             CNI
      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for azure
  -n, --name string            Cluster Name (default "demo")
      --noMP int               Number of Managed Nodes (default -1)
      --nodeSizeMP string      Node size of managed cluster nodes
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
      --version string         Kubernetes Version
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl create-cluster - Use to create a cluster

Auto generated by spf13/cobra on 2-Dec-2024

4.6 - ksctl_create-cluster_civo

ksctl create-cluster civo

Use to create a Civo managed k3s cluster

Synopsis

Ksctl ascii [logo]

ksctl create-cluster civo [flags]

Examples

ksctl create-cluster civo --name demo --region LON1 --storage store-local --nodeSizeMP g4s.kube.small --noMP 3

Options

      --bootstrap string       Kubernetes Bootstrap
      --cni string             CNI
      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for civo
  -n, --name string            Cluster Name (default "demo")
      --noMP int               Number of Managed Nodes (default -1)
      --nodeSizeMP string      Node size of managed cluster nodes
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
      --version string         Kubernetes Version
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl create-cluster - Use to create a cluster

Auto generated by spf13/cobra on 2-Dec-2024

4.7 - ksctl_create-cluster_ha-aws

ksctl create-cluster ha-aws

Use to create a self-managed Highly Available cluster on AWS

Synopsis

Ksctl ascii [logo]

ksctl create-cluster ha-aws [flags]

Examples

ksctl create-cluster ha-aws -n demo -r us-east-1 --bootstrap k3s -s store-local --nodeSizeCP t2.medium --nodeSizeWP t2.medium --nodeSizeLB t2.micro --nodeSizeDS t2.small --noWP 1 --noCP 3 --noDS 3 --cni cilium@v1.16.1

Options

      --bootstrap string       Kubernetes Bootstrap
      --cni string             CNI
      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for ha-aws
  -n, --name string            Cluster Name (default "demo")
      --noCP int               Number of ControlPlane Nodes (default -1)
      --noDS int               Number of DataStore Nodes (default -1)
      --noWP int               Number of WorkerPlane Nodes (default -1)
      --nodeSizeCP string      Node size of self-managed controlplane nodes
      --nodeSizeDS string      Node size of self-managed datastore nodes
      --nodeSizeLB string      Node size of self-managed loadbalancer node
      --nodeSizeWP string      Node size of self-managed workerplane nodes
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
      --version string         Kubernetes Version
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl create-cluster - Use to create a cluster
• ksctl create-cluster ha-aws add-nodes - Use to add more worker nodes in self-managed Highly-Available cluster on Aws

Auto generated by spf13/cobra on 2-Dec-2024

4.8 - ksctl_create-cluster_ha-aws_add-nodes

ksctl create-cluster ha-aws add-nodes

Use to add more worker nodes in self-managed Highly-Available cluster on Aws

Synopsis

It is used to add nodes to worker nodes in cluster with the given name from user.

ksctl create-cluster ha-aws add-nodes [flags]

Examples

ksctl create ha-aws add-nodes -n demo -r ap-south-1 -s store-local --noWP 3 --nodeSizeWP t2.medium # Here the noWP is the desired count of workernodes


Options

  -h, --help                help for add-nodes
  -n, --name string         Cluster Name (default "demo")
      --noWP int            Number of WorkerPlane Nodes (default -1)
      --nodeSizeWP string   Node size of self-managed workerplane nodes
  -r, --region string       Region
  -s, --storage string      storage provider
  -v, --verbose int         for verbose output
  -y, --yes                 approval to avoid showMsg (default true)

SEE ALSO

• ksctl create-cluster ha-aws - Use to create a self-managed Highly Available cluster on AWS

Auto generated by spf13/cobra on 2-Dec-2024

4.9 - ksctl_create-cluster_ha-azure

ksctl create-cluster ha-azure

Use to create a self-managed Highly-Available cluster on Azure

Synopsis

Ksctl ascii [logo]

ksctl create-cluster ha-azure [flags]

Examples

ksctl create-cluster ha-azure --name demo --region eastus --bootstrap k3s --storage store-local --nodeSizeCP Standard_F2s --nodeSizeWP Standard_F2s --nodeSizeLB Standard_F2s --nodeSizeDS Standard_F2s --noWP 1 --noCP 3 --noDS 3
ksctl create-cluster ha-azure --name demo --region eastus --bootstrap kubeadm --storage store-local --nodeSizeCP Standard_F2s --nodeSizeWP Standard_F4s --nodeSizeLB Standard_F2s --nodeSizeDS Standard_F2s --noWP 1 --noCP 3 --noDS 3 --cni cilium@v1.16.1

Options

      --bootstrap string       Kubernetes Bootstrap
      --cni string             CNI
      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for ha-azure
  -n, --name string            Cluster Name (default "demo")
      --noCP int               Number of ControlPlane Nodes (default -1)
      --noDS int               Number of DataStore Nodes (default -1)
      --noWP int               Number of WorkerPlane Nodes (default -1)
      --nodeSizeCP string      Node size of self-managed controlplane nodes
      --nodeSizeDS string      Node size of self-managed datastore nodes
      --nodeSizeLB string      Node size of self-managed loadbalancer node
      --nodeSizeWP string      Node size of self-managed workerplane nodes
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
      --version string         Kubernetes Version
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl create-cluster - Use to create a cluster
• ksctl create-cluster ha-azure add-nodes - Use to add more worker nodes in self-managed Highly-Available cluster on Azure

Auto generated by spf13/cobra on 2-Dec-2024

4.10 - ksctl_create-cluster_ha-azure_add-nodes

ksctl create-cluster ha-azure add-nodes

Use to add more worker nodes in self-managed Highly-Available cluster on Azure

Synopsis

It is used to add nodes to worker nodes in cluster with the given name from user

ksctl create-cluster ha-azure add-nodes [flags]

Examples

ksctl create ha-azure add-nodes -n demo -r eastus -s store-local --noWP 3 --nodeSizeWP Standard_F2s      # Here the noWP is the desired count of workernodes


Options

      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for add-nodes
  -n, --name string            Cluster Name (default "demo")
      --noWP int               Number of WorkerPlane Nodes (default -1)
      --nodeSizeWP string      Node size of self-managed workerplane nodes
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl create-cluster ha-azure - Use to create a self-managed Highly-Available cluster on Azure

Auto generated by spf13/cobra on 2-Dec-2024

4.11 - ksctl_create-cluster_ha-civo

ksctl create-cluster ha-civo

Use to create a self-managed Highly Available cluster on Civo

Synopsis

Ksctl ascii [logo]

ksctl create-cluster ha-civo [flags]

Examples

ksctl create-cluster ha-civo --name demo --region LON1 --bootstrap k3s --storage store-local --nodeSizeCP g3.small --nodeSizeWP g3.medium --nodeSizeLB g3.small --nodeSizeDS g3.small --noWP 1 --noCP 3 --noDS 3
ksctl create-cluster ha-civo --name demo --region LON1 --bootstrap kubeadm --storage store-local --nodeSizeCP g3.medium --nodeSizeWP g3.large --nodeSizeLB g3.small --nodeSizeDS g3.small --noWP 1 --noCP 3 --noDS 3 --cni cilium@v1.16.1

Options

      --bootstrap string       Kubernetes Bootstrap
      --cni string             CNI
      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for ha-civo
  -n, --name string            Cluster Name (default "demo")
      --noCP int               Number of ControlPlane Nodes (default -1)
      --noDS int               Number of DataStore Nodes (default -1)
      --noWP int               Number of WorkerPlane Nodes (default -1)
      --nodeSizeCP string      Node size of self-managed controlplane nodes
      --nodeSizeDS string      Node size of self-managed datastore nodes
      --nodeSizeLB string      Node size of self-managed loadbalancer node
      --nodeSizeWP string      Node size of self-managed workerplane nodes
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
      --version string         Kubernetes Version
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl create-cluster - Use to create a cluster
• ksctl create-cluster ha-civo add-nodes - Use to add more worker nodes in self-managed Highly-Available cluster on Civo

Auto generated by spf13/cobra on 2-Dec-2024

4.12 - ksctl_create-cluster_ha-civo_add-nodes

ksctl create-cluster ha-civo add-nodes

Use to add more worker nodes in self-managed Highly-Available cluster on Civo

Synopsis

It is used to add nodes to worker nodes in cluster with the given name from user.

ksctl create-cluster ha-civo add-nodes [flags]

Examples

ksctl create ha-civo add-nodes -n demo -r LON1 -s store-local --noWP 3 --nodeSizeWP g3.medium   # Here the noWP is the desired count of workernodes


Options

      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for add-nodes
  -n, --name string            Cluster Name (default "demo")
      --noWP int               Number of WorkerPlane Nodes (default -1)
      --nodeSizeWP string      Node size of self-managed workerplane nodes
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl create-cluster ha-civo - Use to create a self-managed Highly Available cluster on Civo

Auto generated by spf13/cobra on 2-Dec-2024

4.13 - ksctl_create-cluster_local

ksctl create-cluster local

Use to create a kind cluster

Synopsis

Ksctl ascii [logo]

ksctl create-cluster local [flags]

Examples

ksctl create-cluster local --name demo --storage store-local --noMP 3

Options

      --bootstrap string       Kubernetes Bootstrap
      --cni string             CNI
      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for local
  -n, --name string            Cluster Name (default "demo")
      --noMP int               Number of Managed Nodes (default -1)
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
      --version string         Kubernetes Version
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl create-cluster - Use to create a cluster

Auto generated by spf13/cobra on 2-Dec-2024

4.14 - ksctl_cred

ksctl cred

Login to your Cloud-provider Credentials

Synopsis

Ksctl ascii [logo]

ksctl cred [flags]

Options

  -h, --help             help for cred
  -s, --storage string   storage provider
  -v, --verbose          for verbose output (default true)

SEE ALSO

• ksctl - CLI tool for managing multiple K8s clusters

Auto generated by spf13/cobra on 2-Dec-2024

4.15 - ksctl_delete-cluster

ksctl delete-cluster

Use to delete a cluster

Synopsis

Ksctl ascii [logo]

Examples

ksctl delete --help


Options

  -h, --help   help for delete-cluster

SEE ALSO

• ksctl - CLI tool for managing multiple K8s clusters
• ksctl delete-cluster aws - Use to deletes a EKS cluster
• ksctl delete-cluster azure - Use to deletes a AKS cluster
• ksctl delete-cluster civo - Use to delete a Civo managed k3s cluster
• ksctl delete-cluster ha-aws - Use to delete a self-managed Highly Available cluster on AWS
• ksctl delete-cluster ha-azure - Use to delete a self-managed Highly Available cluster on Azure
• ksctl delete-cluster ha-civo - Use to delete a self-managed Highly Available cluster on Civo
• ksctl delete-cluster local - Use to delete a kind cluster

Auto generated by spf13/cobra on 2-Dec-2024

4.16 - ksctl_delete-cluster_aws

ksctl delete-cluster aws

Use to deletes a EKS cluster

Synopsis

Ksctl ascii [logo]

ksctl delete-cluster aws [flags]

Examples

ksctl delete aws --name demo --region ap-south-1 --storage store-local

Options

  -h, --help             help for aws
  -n, --name string      Cluster Name (default "demo")
  -r, --region string    Region
  -s, --storage string   storage provider
  -v, --verbose int      for verbose output
  -y, --yes              approval to avoid showMsg (default true)

SEE ALSO

• ksctl delete-cluster - Use to delete a cluster

Auto generated by spf13/cobra on 2-Dec-2024

4.17 - ksctl_delete-cluster_azure

ksctl delete-cluster azure

Use to deletes a AKS cluster

Synopsis

Ksctl ascii [logo]

ksctl delete-cluster azure [flags]

Examples

ksctl delete azure --name demo --region eastus --storage store-local

Options

      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for azure
  -n, --name string            Cluster Name (default "demo")
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl delete-cluster - Use to delete a cluster

Auto generated by spf13/cobra on 2-Dec-2024

4.18 - ksctl_delete-cluster_civo

ksctl delete-cluster civo

Use to delete a Civo managed k3s cluster

Synopsis

Ksctl ascii [logo]

ksctl delete-cluster civo [flags]

Examples

ksctl delete civo --name demo --region LON1 --storage store-local

Options

      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for civo
  -n, --name string            Cluster Name (default "demo")
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl delete-cluster - Use to delete a cluster

Auto generated by spf13/cobra on 2-Dec-2024

4.19 - ksctl_delete-cluster_ha-aws

ksctl delete-cluster ha-aws

Use to delete a self-managed Highly Available cluster on AWS

Synopsis

Ksctl ascii [logo]

ksctl delete-cluster ha-aws [flags]

Examples

ksctl delete ha-aws --name demo --region us-east-1 --storage store-local

Options

      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for ha-aws
  -n, --name string            Cluster Name (default "demo")
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl delete-cluster - Use to delete a cluster
• ksctl delete-cluster ha-aws del-nodes - Use to remove worker nodes in self-managed Highly-Available cluster on Aws

Auto generated by spf13/cobra on 2-Dec-2024

4.20 - ksctl_delete-cluster_ha-aws_del-nodes

ksctl delete-cluster ha-aws del-nodes

Use to remove worker nodes in self-managed Highly-Available cluster on Aws

Synopsis

It is used to delete cluster with the given name from user

ksctl delete-cluster ha-aws del-nodes [flags]

Examples

ksctl delete ha-aws del-nodes -n demo -r us-east-1 -s store-local --noWP 1      # Here the noWP is the desired count of workernodes


Options

  -h, --help             help for del-nodes
  -n, --name string      Cluster Name (default "demo")
      --noWP int         Number of WorkerPlane Nodes (default -1)
  -r, --region string    Region
  -s, --storage string   storage provider
  -v, --verbose int      for verbose output
  -y, --yes              approval to avoid showMsg (default true)

SEE ALSO

• ksctl delete-cluster ha-aws - Use to delete a self-managed Highly Available cluster on AWS

Auto generated by spf13/cobra on 2-Dec-2024

4.21 - ksctl_delete-cluster_ha-azure

ksctl delete-cluster ha-azure

Use to delete a self-managed Highly Available cluster on Azure

Synopsis

Ksctl ascii [logo]

ksctl delete-cluster ha-azure [flags]

Examples

ksctl delete ha-azure --name demo --region eastus --storage store-local

Options

      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for ha-azure
  -n, --name string            Cluster Name (default "demo")
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl delete-cluster - Use to delete a cluster
• ksctl delete-cluster ha-azure del-nodes - Use to remove worker nodes in self-managed Highly-Available cluster on Azure

Auto generated by spf13/cobra on 2-Dec-2024

4.22 - ksctl_delete-cluster_ha-azure_del-nodes

ksctl delete-cluster ha-azure del-nodes

Use to remove worker nodes in self-managed Highly-Available cluster on Azure

Synopsis

It is used to delete cluster with the given name from user

ksctl delete-cluster ha-azure del-nodes [flags]

Examples

ksctl delete ha-azure del-nodes -n demo -r eastus -s store-local --noWP 1     # Here the noWP is the desired count of workernodes


Options

      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for del-nodes
  -n, --name string            Cluster Name (default "demo")
      --noWP int               Number of WorkerPlane Nodes (default -1)
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl delete-cluster ha-azure - Use to delete a self-managed Highly Available cluster on Azure

Auto generated by spf13/cobra on 2-Dec-2024

4.23 - ksctl_delete-cluster_ha-civo

ksctl delete-cluster ha-civo

Use to delete a self-managed Highly Available cluster on Civo

Synopsis

Ksctl ascii [logo]

ksctl delete-cluster ha-civo [flags]

Examples

ksctl delete ha-civo --name demo --region LON1 --storage store-local

Options

      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for ha-civo
  -n, --name string            Cluster Name (default "demo")
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl delete-cluster - Use to delete a cluster
• ksctl delete-cluster ha-civo del-nodes - Use to remove worker nodes in self-managed Highly-Available cluster on Civo

Auto generated by spf13/cobra on 2-Dec-2024

4.24 - ksctl_delete-cluster_ha-civo_del-nodes

ksctl delete-cluster ha-civo del-nodes

Use to remove worker nodes in self-managed Highly-Available cluster on Civo

Synopsis

It is used to delete cluster with the given name from user

ksctl delete-cluster ha-civo del-nodes [flags]

Examples

ksctl delete ha-civo del-nodes -n demo -r LON1 -s store-local --noWP 1      # Here the noWP is the desired count of workernodes


Options

      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for del-nodes
  -n, --name string            Cluster Name (default "demo")
      --noWP int               Number of WorkerPlane Nodes (default -1)
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl delete-cluster ha-civo - Use to delete a self-managed Highly Available cluster on Civo

Auto generated by spf13/cobra on 2-Dec-2024

4.25 - ksctl_delete-cluster_local

ksctl delete-cluster local

Use to delete a kind cluster

Synopsis

Ksctl ascii [logo]

ksctl delete-cluster local [flags]

Examples

ksctl delete local --name demo --storage store-local

Options

      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for local
  -n, --name string            Cluster Name (default "demo")
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output
  -y, --yes                    approval to avoid showMsg (default true)

SEE ALSO

• ksctl delete-cluster - Use to delete a cluster

Auto generated by spf13/cobra on 2-Dec-2024

4.26 - ksctl_get-clusters

ksctl get-clusters

Use to get clusters

Synopsis

Ksctl ascii [logo]

ksctl get-clusters [flags]

Examples

ksctl get --provider all --storage store-local

Options

      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for get-clusters
  -p, --provider string        Provider
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output

SEE ALSO

• ksctl - CLI tool for managing multiple K8s clusters

Auto generated by spf13/cobra on 2-Dec-2024

4.27 - ksctl_info-cluster

ksctl info-cluster

Use to info cluster

Synopsis

Ksctl ascii [logo]

ksctl info-cluster [flags]

Examples

ksctl info --provider azure --name demo --region eastus --storage store-local
ksctl info -p ha-azure -n ha-demo-kubeadm -r eastus -s store-local --verbose -1

Options

      --feature-flags string   Experimental Features: Supported values with comma seperated: [autoscale]
  -h, --help                   help for info-cluster
  -n, --name string            Cluster Name (default "demo")
  -p, --provider string        Provider
  -r, --region string          Region
  -s, --storage string         storage provider
  -v, --verbose int            for verbose output

SEE ALSO

• ksctl - CLI tool for managing multiple K8s clusters

Auto generated by spf13/cobra on 2-Dec-2024

4.28 - ksctl_self-update

ksctl self-update

update the ksctl cli

Synopsis

Ksctl ascii [logo]

ksctl self-update [flags]

Options

  -h, --help             help for self-update
  -s, --storage string   storage provider
  -v, --verbose          for verbose output (default true)

SEE ALSO

• ksctl - CLI tool for managing multiple K8s clusters

Auto generated by spf13/cobra on 2-Dec-2024

4.29 - ksctl_version

ksctl version

Print the version number of ksctl

ksctl version [flags]

Options

  -h, --help   help for version

SEE ALSO

• ksctl - CLI tool for managing multiple K8s clusters

Auto generated by spf13/cobra on 2-Dec-2024

5 - Contribution Guidelines

Provide a generic tasks for new and existing contributors

Types of changes

There are many ways to contribute to the ksctl project. Here are a few examples:

• New changes to docs: You can contribute by writing new documentation, fixing typos, or improving the clarity of existing documentation.
• New features: You can contribute by proposing new features, implementing new features, or fixing bugs.
• Cloud support: You can contribute by adding support for new cloud providers.
• Kubernetes distribution support: You can contribute by adding support for new Kubernetes distributions.

Phases a change / feature goes through

1. Raise a issue regarding it (used for prioritizing)
2. what all changes does it demands
3. if all goes well you will be assigned
4. If its about adding Cloud Support then usages of CloudFactory is needed and sperate the logic of vm, firewall, etc. to their respective files and do have a helper file for behind the scenes logic for ease of use
5. If its about adding Distribution support do check its compatability with different cloud providers vm configs and firewall rules which needs to be done

Formating for PR & Issue subject line

Subject / Title

# Releated to enhancement
enhancement: <Title>

# Related to feature
feat: <Title>

# Related to Bug fix or other types of fixes
fix: <Title>

# Related to update
update: <Title>

Body

Follow the PR or Issue template add all the significant changes to the PR description

Commit messages

mention the detailed description in the git commits. what? why? How?

Each commit must be sign-off and should follow conventional commit guidelines.

Conventional Commits

The commit message should be structured as follows:

<type>(optional scope): <description>

[optional body]

[optional footer(s)]

For more detailed information on conventional commits, you can refer to the official Conventional Commits specification.

Sign-off

Each commit must be signed-off. You can do this by adding a sign-off line to your commit messages. When committing changes in your local branch, add the -S flag to the git commit command:

$ git commit -S -m "YOUR_COMMIT_MESSAGE"
# Creates a signed commit

You can find more comprehensive details on how to sign off git commits by referring to the GitHub section on signing commits.

Verification of Commit Signatures

You have the option to sign commits and tags locally, which adds a layer of assurance regarding the origin of your changes. GitHub designates commits or tags as either “Verified” or “Partially verified” if they possess a GPG, SSH, or S/MIME signature that is cryptographically valid.

GPG Commit Signature Verification

To sign commits using GPG and ensure their verification on GitHub, adhere to these steps:

• Check for existing GPG keys.
• Generate a new GPG key.
• Add the GPG key to your GitHub account.
• Inform Git about your signing key.
• Proceed to sign commits.

SSH Commit Signature Verification

To sign commits using SSH and ensure their verification on GitHub, follow these steps:

• Check for existing SSH keys.
• Generate a new SSH key.
• Add an SSH signing key to your GitHub account.
• Inform Git about your signing key.
• Proceed to sign commits.

S/MIME Commit Signature Verification

To sign commits using S/MIME and ensure their verification on GitHub, follow these steps:

• Inform Git about your signing key.
• Proceed to sign commits.

For more detailed instructions, refer to GitHub’s documentation on commit signature verification

Development

First you have to fork the ksctl repository. fork

cd <path> # to you directory where you want to clone ksctl
mkdir <directory name> # create a directory
cd <directory name> # go inside the directory
git clone https://github.com/${YOUR_GITHUB_USERNAME}/ksctl.git # clone you fork repository
cd ksctl # go inside the ksctl directory
git remote add upstream https://github.com/ksctl/ksctl.git # set upstream
git remote set-url --push upstream no_push # no push to upstream

Trying out code changes

Before submitting a code change, it is important to test your changes thoroughly. You can do this by running the unit tests and integration tests.

Submitting changes

Once you have tested your changes, you can submit them to the ksctl project by creating a pull request. Make sure you use the provided PR template

Getting help

If you need help contributing to the ksctl project, you can ask for help on the kubesimplify Discord server, ksctl-cli channel or else raise issue or discussion

Thank you for contributing!

We appreciate your contributions to the ksctl project!

Some of our contributors ksctl contributors

5.1 - Contribution Guidelines for CLI

How to Build from source

Linux

make install_linux # for linux

Mac OS

make install_macos # for macos

Windows

.\builder.ps1 # for windows

5.2 - Contribution Guidelines for Core

Project structure

pkg/

It contains the importable functionality of ksctl

• Controllers (as this will be the only way to interact with the ksctlcore
• Utility functions with consts and errors
• Logger
• Types

internal/

It contains the cloudProvider, K8sDistro, StorageDriver specific implementations

test/

It contains the e2e and e2e test helper code and also the mock test files

Test out both All Mock and Unit tests and lints

make test

Test out both All Unit tests

make unit_test_all

Test out both All Mock tests

make mock_all

for E2E tests on local

set the required token as ENV vars then

cd test/e2e

# then the syntax for running
go run . -op create -file azure/create.json

# for operations you can refer file test/e2e/consts.go

5.3 - Contribution Guidelines for Docs

How to Build from source

# Prequisites
npm install -D postcss
npm install -D postcss-cli
npm install -D autoprefixer
npm install hugo-extended

Install Dependencies

hugo serve

6 - Concepts

Sequence diagrams for 2 major operations

Create Cloud-Managed Clusters

sequenceDiagram
    participant cm as Manager Cluster Managed
    participant cc as Cloud Controller
    participant kc as Ksctl Kubernetes Controller
    cm->>cc: transfers specs from user or machine
    cc->>cc: to create the cloud infra (network, subnet, firewall, cluster)
    cc->>cm: 'kubeconfig' and other cluster access to the state
    cm->>kc: shares 'kubeconfig'
    kc->>kc: installs kubectl agent, stateimporter and controllers
    kc->>cm: status of creation

Create Self-Managed HA clusters

sequenceDiagram
    participant csm as Manager Cluster Self-Managed
    participant cc as Cloud Controller
    participant bc as Bootstrap Controller
    participant kc as Ksctl Kubernetes Controller
    csm->>cc: transfers specs from user or machine
    cc->>cc: to create the cloud infra (network, subnet, firewall, vms)
    cc->>csm: return state to be used by BootstrapController
    csm->>bc: transfers infra state like ssh key, pub IPs, etc
    bc->>bc: bootstrap the infra by either (k3s or kubeadm)
    bc->>csm: 'kubeconfig' and other cluster access to the state
    csm->>kc: shares 'kubeconfig'
    kc->>kc: installs kubectl agent, stateimporter and controllers
    kc->>csm: status of creation

6.1 - Cloud Controller

6.2 - Core functionalities

Basic cluster operations

Create

• HA self-managed cluster (VM is provisioned and ssh into and configure them just like ansible)
• Managed (cloud provider creates the clusters and we get the kubeconfig in return)

Delete

• HA self managed cluster
• Managed cluster

Scaleup

• Only for ha cluster as the user has manual ability to increase the number of worknodes
• Example: if workernode 1 then it will create 2 then 3…

Scaledown

• Only for ha cluster as the user has manual ability to decrease the number of worknodes
• Example: if workernodes are 1, 2 then it will delete from the last to first aka 2 then 1

Switch

• It will just use the request from the user to get the kubeconfig from specific cluster and save to specific folder that is ~/.ksctl/kubeconfig

Get

• Both ha and manage cluster it will search folders in specific directory to get what all cluster have been created for specific provider

Example: Here for get request of azure it will scan the directory .ksctl/state/azure/ha and for managed as well to get all the folder names

6.3 - Core Manager

Types

ManagerClusterKsctl

Role: Perform ksctl getCluster, switchCluster

ManagerClusterKubernetes

Role: Perform ksctl addApplicationAndCrds Currently to be used by machine to machine not by ksctl cli

ManagerClusterManaged

Role: Perform ksctl createCluster, deleteCluster

ManagerClusterSelfManaged

Role: Perform ksctl createCluster, deleteCluster, addWorkerNodes, delWorkerNodes

6.4 - Distribution Controller

7 - Contributors

Sponsors

Communities

8 - Faq

General

What is ksctl?

Ksctl is a lightweight, easy-to-use tool that simplifies the process of managing Kubernetes clusters. It provides a unified interface for common cluster operations like create, delete, scaleup and down, and is designed to be simple, efficient, and developer-friendly.

What can I do with ksctl?

With ksctl, you can deploy Kubernetes clusters across any cloud provider, switch between providers seamlessly, and choose between managed and self-managed HA clusters. You can deploy clusters with a single command, without any complex configuration, and manage them with a unified interface that eliminates the need for provider-specific CLIs.

How does ksctl simplify cluster management?

Ksctl simplifies cluster management by providing a streamlined interface for common cluster operations like create, delete, scaleup and down. It eliminates the need for complex configuration and provider-specific CLIs, and provides a consistent experience across environments. With ksctl, developers can focus on building great applications without getting bogged down by the complexities of cluster management.

Who is ksctl for?

Ksctl is designed for developers, DevOps engineers, and anyone who needs to manage Kubernetes clusters. It is ideal for teams of all skill levels, from beginners to experts, and provides a simple, efficient, and developer-friendly way to deploy and manage clusters.

How does ksctl differ from other cluster management tools?

Ksctl is a lightweight, easy-to-use tool that simplifies the process of managing Kubernetes clusters. It provides a unified interface for common cluster operations like create, delete, scaleup and down, and is designed to be simple, efficient, and developer-friendly. Ksctl is not a full-fledged platform like Rancher, but rather a simple CLI tool that provides a streamlined interface for common cluster operations.

Comparisons

Ksctl vs Cluster API

• Simplicity vs Complexity: Cluster API uses a sophisticated set of CRDs (Custom Resource Definitions) to manage machines, machine sets, and deployments. In contrast, Ksctl adopts a minimalist approach, focusing on reducing complexity for developers and operators.
• Target Audience: Ksctl caters to users seeking a lightweight, user-friendly tool for quick cluster management tasks, particularly in development and testing environments. Cluster API is designed for production-grade use cases, emphasizing flexibility and integration with Kubernetes’ declarative model.
• Dependencies: Ksctl is a standalone CLI tool that does not require a running Kubernetes cluster, making it easy to set up and run anywhere. On the other hand, Cluster API requires a pre-existing Kubernetes cluster to operate.
• Feature Focus: Ksctl emphasizes speed and simplicity in managing cluster lifecycle operations (create, delete, scale). Cluster API provides deeper control and automation features suitable for enterprises managing complex Kubernetes ecosystems.

What is the difference between Ksctl and k3sup?

• Scope: Ksctl is a comprehensive tool for managing Kubernetes clusters across multiple environments from cloud managed Kubernetes flavour to K3s and kubeadm. K3sup, on the other hand, focuses primarily on bootstrapping lightweight k3s clusters.
• Features: Ksctl handles infrastructure provisioning, cluster scaling, and cloud-agnostic lifecycle management, whereas k3sup is limited to installing k3s clusters without managing the underlying infrastructure.
• Cloud Support: Ksctl provides a unified interface for managing clusters across different providers, making it suitable for multi-cloud strategies. K3sup is more limited and designed for standalone setups.

How does Ksctl compare to Rancher?

• Tool vs Platform: Ksctl is a streamlined CLI tool for cluster management. Rancher, by contrast, is a feature-rich platform offering cluster governance, monitoring, access control, and application management.
• Use Case: Ksctl is lightweight and ideal for developers needing quick, uncomplicated cluster management. Rancher is tailored for enterprise environments where centralized management and control of multiple clusters are essential.
• Operational Scope: Ksctl focuses on basic lifecycle operations (create, delete, scale). Rancher includes features like Helm chart deployment, RBAC integration, and advanced workload management.

What is the difference between Ksctl and k3d, Kind, or Minikube?

• Environment Scope: Ksctl is designed for both local and cloud-based Kubernetes cluster management. Tools like k3d, Kind, and Minikube are primarily for local development and testing purposes.
• Cluster Management: Ksctl can provision, scale, and delete clusters in cloud environments, whereas k3d, Kind, and Minikube focus on providing lightweight clusters for experimentation and local development.
• Infrastructure Management: Ksctl integrates with infrastructure provisioning, while the others rely on pre-existing local environments (e.g., Docker for k3d and Kind, or virtual machines for Minikube).

How does Ksctl compare to eksctl?

• Cloud Support: Ksctl is cloud-agnostic and supports multiple providers, making it suitable for multi-cloud setups. Eksctl, on the other hand, is tightly coupled with AWS and designed exclusively for managing EKS clusters.
• Features: Ksctl provides an all-in-one tool for provisioning infrastructure, managing the cluster lifecycle, and scaling across different environments. Eksctl is focused on streamlining EKS setup and optimizing AWS integrations like IAM, VPCs, and Load Balancers.
• Target Audience: Ksctl appeals to users seeking a flexible, multi-cloud solution. Eksctl is ideal for AWS-centric teams that require deep integration with AWS services.

9 - Features

Our Vision

Transform your Kubernetes experience with a tool that puts simplicity and efficiency first. Ksctl eliminates the complexity of cluster management, allowing developers to focus on what matters most – building great applications.

Key Features

🌐 Universal Cloud Support

• Deploy clusters across any cloud provider
• Seamless switching between providers
• Support for both managed and self-managed clusters
• Freedom to choose your bootstrap provider (K3s or Kubeadm)

🚀 Zero-to-Cluster Simplicity

• Single command cluster deployment
• No complex configuration required
• Automated setup and initialization
• Instant development environment readiness
• Local file-based or MongoDB storage options
• Single binary deployment thus light-weight and efficient

🛠️ Streamlined Management

• Unified interface for all operations
• Eliminates need for provider-specific CLIs
• Consistent experience across environments
• Simplified scaling and upgrades

🎯 Developer-Focused Design

• Near-zero learning curve
• Intuitive command structure
• No new configurations to learn
• Perfect for teams of all skill levels
• We have WASM workload support as well Refer

🔄 Flexible Operation

• Self-managed cluster support
• Cloud provider managed offerings
• Multiple bootstrap provider options
• Seamless environment transitions

Technical Benefits

• Infrastructure Agnostic: Deploy anywhere, manage consistently
• Rapid Deployment: Bypass complex setup steps and day 0 tasks
• Future-Ready: Upcoming support for day 1 operations and Wasm
• Community-Driven: Active development and continuous improvements

10 - Ksctl Components

Components

• ksctl agent
• ksctl stateimporter
• ksctl application controller

Sequence diagram on how its deployed

flowchart TD
Base(Ksctl Infra and Bootstrap) -->|Cluster is created| KC(Ksctl controller)
KC -->|Creates| Storage{storageProvider=='local'}
Storage -->|Yes| KSI(Ksctl Storage Importer)
Storage -->|No| KA(Ksctl Agent)
KSI -->KA
KA -->|Health| D(Deploy other ksctl controllers)

10.1 - Ksctl Agent

It is a GRPC server running as a deployment. and a fleet of controllers will call it to perform certain operations. For instance, application installation via stack.application.ksctl.com/v1alpha, etc.

It will be installed on all kubernetes cluster created via ksctl from >= v1.2.0

10.2 - Ksctl Application Controller

Types

Stack

For defining a hetrogenous components we came up with a stack which contains M number of components which are different applications with their versions

Supported Apps and CNI

Argo-CD

How to use it (Basic Usage)

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: argocd
spec:
	stacks:
	- stackId: standard-argocd
		appType: app

Overrides available

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: argocd
spec:
	stacks:
	- stackId: standard-argocd
		appType: app
		overrides:
			argocd:
				version: <string> # version of the argocd
				noUI: <bool> # to disable the UI
				namespace: <string> # namespace to install argocd
				namespaceInstall: <bool> # to install namespace specific argocd

Argo-Rollouts

How to use it (Basic Usage)

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: argorollouts
spec:
	stacks:
	- stackId: standard-argorollouts
		appType: app

Overrides available

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: argorollouts
spec:
	stacks:
	- stackId: standard-argorollouts
		appType: app
		overrides:
			argorollouts:
				version: <string> # version of the argorollouts
				namespace: <string> # namespace to install argocd
				namespaceInstall: <bool> # to install namespace specific argocd

Istio

How to use it (Basic Usage)

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: istio
spec:
	stacks:
	- stackId: standard-istio
		appType: app

Overrides available

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: istio
spec:
	stacks:
	- stackId: standard-istio
		appType: app
		overrides:
			istio:
				version: <string> # version of the istio
				helmBaseChartOverridings: <map[string]any> # helm chart overridings, istio/base
				helmIstiodChartOverridings: <map[string]any> # helm chart overridings, istio/istiod

Cilium

Currently we cannot install via the ksctl crd as cni are needed to be installed when configuring otherwise it will cause network issues

still we have cilium can be installed and only configuration available are version, we are working towards how can we allow users to specify the overridings in the cluster creation

anyways here is how it is done

we can consider using a file spec instead of cmd parameter, until that is done you have to wait

How to use it (Basic Usage)

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: cilium
spec:
	stacks:
	- stackId: cilium
		appType: app

Overrides available

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: cilium
spec:
	stacks:
	- stackId: cilium
		appType: app
		overrides:
			cilium:
				version: <string> # version of the cilium
				ciliumChartOverridings: <map[string]any> # helm chart overridings, cilium

Flannel

Currently we cannot install via the ksctl crd as cni are needed to be installed when configuring otherwise it will cause network issues

still we have flannel can be installed and only configuration available are version, we are working towards how can we allow users to specify the overridings in the cluster creation

we can consider using a file spec instead of cmd parameter, until that is done you have to wait

How to use it (Basic Usage)

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: flannel
spec:
	stacks:
	- stackId: flannel
		appType: cni

Overrides available

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: flannel
spec:
	stacks:
	- stackId: flannel
		appType: cni
		overrides:
			flannel:
				version: <string> # version of the flannel

Kube-Prometheus

How to use it (Basic Usage)

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: monitoring
spec:
	stacks:
	- stackId: standard-kubeprometheus
		appType: app

Overrides available

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: monitoring
spec:
	stacks:
	- stackId: standard-kubeprometheus
		appType: app
		overrides:
			kube-prometheus:
				version: <string> # version of the kube-prometheus
				helmKubePromChartOverridings: <map[string]any> # helm chart overridings, kube-prometheus

SpinKube

How to use it (Basic Usage)

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: wasm-spinkube
spec:
	stacks:
	- stackId: production-spinkube
		appType: app

Demo app

kubectl apply -f https://raw.githubusercontent.com/spinkube/spin-operator/main/config/samples/simple.yaml
kubectl port-forward svc/simple-spinapp 8083:80
curl localhost:8083/hello

Overrides available

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: wasm-spinkube
spec:
	stacks:
	- stackId: production-wasmedge-kwasm
		appType: app
		overrides:
			spinkube-operator:
				version: <string> # version of the spinkube-operator-shim-executor are same for shim-execuator, runtime-class, shim-executor-crd, spinkube-operator
				helmOperatorChartOverridings: <map[string]any> # helm chart overridings, spinkube-operator

			spinkube-operator-shim-executor:
				version: <string> # version of the spinkube-operator-shim-executor are same for shim-execuator, runtime-class, shim-executor-crd, spinkube-operator

			spinkube-operator-runtime-class:
				version: <string> # version of the spinkube-operator-shim-executor are same for shim-execuator, runtime-class, shim-executor-crd, spinkube-operator

			spinkube-operator-crd:
				version: <string> # version of the spinkube-operator-shim-executor are same for shim-execuator, runtime-class, shim-executor-crd, spinkube-operator

			cert-manager:
				version: <string>
				certmanagerChartOverridings: <map[string]any> # helm chart overridings, cert-manager

			kwasm-operator:
				version: <string>
				kwasmOperatorChartOverridings: <map[string]any> # helm chart overridings, kwasm/kwasm-operator

Kwasm

How to use it (Basic Usage)

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: wasm-kwasm
spec:
	stacks:
	- stackId: production-kwasm
		appType: app

Demo app(wasmedge)

---
apiVersion: v1
kind: Pod
metadata:
	name: "myapp"
	namespace: default
	labels:
		app: nice
spec:
	runtimeClassName: wasmedge
	containers:
	- name: myapp
		image: "docker.io/cr7258/wasm-demo-app:v1"
		ports:
		- containerPort: 8080
			name: http
	restartPolicy: Always
---
apiVersion: v1
kind: Service
metadata:
	name: nice
spec:
	selector:
		app: nice
	type: ClusterIP
	ports:
	- name: nice
		protocol: TCP
		port: 8080
		targetPort: 8080

Demo app(wasmtime)

apiVersion: batch/v1
kind: Job
metadata:
  name: nice
  namespace: default
  labels:
    app: nice
spec:
  template:
    metadata:
      name: nice
      labels:
        app: nice
    spec:
      runtimeClassName: wasmtime
      containers:
      - name: nice
        image: "meteatamel/hello-wasm:0.1"
      restartPolicy: OnFailure

#### For wasmedge
# once up and running
kubectl port-forward svc/nice 8080:8080

# then you can curl the service
curl localhost:8080

#### For wasmtime
# just check the logs

Overrides available

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: wasm-wasmedge
spec:
	stacks:
	- stackId: production-kwasm
		appType: app
		overrides:
			kwasm-operator:
				version: <string>
				kwasmOperatorChartOverridings: <map[string]any> # helm chart overridings, kwasm/kwasm-operator

Example usage

Lets deploy argocd@v2.9.X, kube-prometheus-stack@v55.X.Y

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: monitoring-plus-gitops
spec:
	components:
		- appName: standard-argocd
			appType: app
			version: v2.9.12

		- appName: standard-kubeprometheus
			appType: app
			version: "55.0.0"

You can see once its deployed it fetch and deploys them

Lets try to upgrade them to their latest versions

kubeclt edit stack monitoring-plus-gitops

apiVersion: application.ksctl.com/v1alpha1
kind: Stack
metadata:
	name: monitoring-plus-gitops
spec:
	components:
		- appName: standard-argocd
			appType: app
			version: latest

		- appName: standard-kubeprometheus
			appType: app
			version: latest

once edited it will uninstall the previous install and reinstalls the latest deployments

10.3 - Ksctl State-Importer

It is used to transfer data in ~/.ksctl location (provided the cluster is created via storageProvider: store-local).

It utilizes the these 2 methods:

• Export: StorageFactory Interface
• Import: StorageFactory Interface

so before the ksctl agent is deployed we first create this pod which in turn runs a http server having storageProvider: store-kubernetes and uses storage.Import() method

once we get 200 OK responses from the http server we remove the pod and move to ksctl agent deployment so that it can use the state file present in configmaps, secrets

11 - Kubernetes Distributions

11.1 - K3s

K3s is used for self-managed clusters. Its a lightweight k8s distribution. We are using it as follows:

• controlplane (k3s server)
• workerplane (k3s agent)
• datastore (etcd members)

11.2 - Kubeadm

Kubeadm support is added with etcd as datastore

12 - Maintainers

Maintainers

13 - Roadmap

Supported Providers

flowchart LR;
  classDef green color:#022e1f,fill:#00f500;
  classDef red color:#022e1f,fill:#f11111;
  classDef white color:#022e1f,fill:#fff;
  classDef black color:#fff,fill:#000;
  classDef blue color:#fff,fill:#00f;

  XX[ksctl]--CloudFactory-->web{Cloud Providers};
  XX[ksctl]--DistroFactory-->web2{Distributions};
  XX[ksctl]--StorageFactory-->web3{State Storage};

  web--Civo-->civo{Types};
  civo:::green--managed-->civom[Create & Delete]:::green;
  civo--HA-->civoha[Create & Delete]:::green;

  web--Local-Kind-->local{Types};
  local:::green--managed-->localm[Create & Delete]:::green;
  local--HA-->localha[Create & Delete]:::black;

  web--AWS-->aws{Types};
  aws:::green--managed-->awsm[Create & Delete]:::green;
  aws--HA-->awsha[Create & Delete]:::green;

  web--Azure-->az{Types};
  az:::green--managed-->azsm[Create & Delete]:::green;
  az--HA-->azha[Create & Delete]:::green;

  web2--K3S-->k3s{Types};
  k3s:::green--HA-->k3ha[Create & Delete]:::green;

  web2--Kubeadm-->kubeadm{Types};
  kubeadm:::green--HA-->kubeadmha[Create & Delete]:::green;

  web3--Local-Store-->slocal{Local}:::green;
  web3--Remote-Store-->rlocal{Remote}:::green;
  rlocal--Provider-->mongo[MongoDB]:::green;

Next Features

Project Board

All the below features will be moved to the Project Board and will be tracked there.

• Talos as the next Bootstrap provider
• Green software which can help you save energy and also better somehow
• WASM first class support feature
• ML features unikernels and better ML workload scalability
• Production stack for monitoring, security, to application specific application integrations like vault, kafka, etc.
• Health checks of various k8s cluster
• Role Based Access Control for any cluster
• Ability import any existing cluster and also to respect the existing state and not overwrite it with the new state from ksctl but to be able to manage only the resources which the tool has access
• add initial production ready for cert manager + ingress controller (nginx) + gateway api
• add initial production ready for monitoring (prometheus + grafana) tracing (jaeger) Opentelemtery support
• add initial production ready for Networking (cilium)
• add initial production ready for service mesh (istio)
• add support for Kubernetes migration like moving from one cloud provider to another
• add support Kubernetes Backup
• open telemetry support will lead to better observability by combining logs, metrics, and traces in one place and some amazing tools we can use to make the detection amazing with Alerting, suggestions, … from errors to suggestions based on some patterns

14 - Search Results

15 - Storage

15.1 - External Storage

Refer : internal/storage/external/mongodb

Data to store and filtering it performs

1. first it gets the cluster data / credentials data based on this filters
   • cluster_name (for cluster)
   • region (for cluster)
   • cloud_provider (for cluster & credentials)
   • cluster_type (for cluster)
   • also when the state of the cluster has recieved the stable desired state mark the IsCompleted flag in the specific cloud_provider struct to indicate its done
2. make sure the above things are specified before writing in the storage

How to use it

1. you need to call the Init function to get the storage make sure you have the interface type variable as the caller
2. before performing any operations you must call the Connect().
3. for using methods: Read(), Write(), Delete() make sure you have called the Setup()
4. for calling ReadCredentials(), WriteCredentials() you can use it directly just need to specify the cloud provider you want to write
5. for calling GetOneOrMoreClusters() you need simply specify the filter
6. for calling AlreadyCreated() you just have to specify the func args
7. Don’t forget to call the storage.Kill() when you want to stop the complte execution. it guarantees that it will wait till all the pending operations on the storage are completed
8. Custom Storage Directory you would need to specify the env var KSCTL_CUSTOM_DIR_ENABLED the value must be directory names wit space separated
9. specify the Required ENV vars
   • export MONGODB_URI=""

   Hint: mongodb://${username}:${password}@${domain}:${port} or mongo+atlas mongodb+srv://${username}:${password}@${domain}

Things to look for

1. make sure when you recieve return data from Read(). copy the address value to the storage pointer variable and not the address!

2. When any credentials are written, it will be stored in

   • Database: ksctl-{userid}-db
   • Collection: {cloud_provider}
   • Document/Record: raw bson data with above specified data and filter fields

3. When any clusterState is written, it gets stored in

   • Database: ksctl-{userid}-db
   • Collection: credentials
   • Document/Record: raw bson data with above specified data and filter fields

4. When you do Switch aka getKubeconfig it fetches the kubeconfig from the point 3 and stores it to <some_dir>/.ksctl/kubeconfig

15.2 - Local Storage

Refer: internal/storage/local

Data to store and filtering it performs

1. first it gets the cluster data / credentials data based on this filters
   • cluster_name (for cluster)
   • region (for cluster)
   • cloud_provider (for cluster & credentials)
   • cluster_type (for cluster)
   • also when the state of the cluster has recieved the stable desired state mark the IsCompleted flag in the specific cloud_provider struct to indicate its done
2. make sure the above things are specified before writing in the storage

it is stored something like this

 it will use almost the same construct.
 * ClusterInfos => $USER_HOME/.ksctl/state/
	 |-- {cloud_provider}
		|-- {cluster_type} aka (ha, managed)
			|-- "{cluster_name} {region}"
				|-- state.json
 * CredentialInfo => $USER_HOME/.ksctl/credentials/{cloud_provider}.json

How to use it

1. you need to call the Init function to get the storage make sure you have the interface type variable as the caller
2. before performing any operations you must call the Connect().
3. for using methods: Read(), Write(), Delete() make sure you have called the Setup()
4. for calling ReadCredentials(), WriteCredentials() you can use it directly just need to specify the cloud provider you want to write
5. for calling GetOneOrMoreClusters() you need simply specify the filter
6. for calling AlreadyCreated() you just have to specify the func args
7. Don’t forget to call the storage.Kill() when you want to stop the complte execution. it guarantees that it will wait till all the pending operations on the storage are completed
8. Custom Storage Directory you would need to specify the env var KSCTL_CUSTOM_DIR_ENABLED the value must be directory names wit space separated
9. it creates the configuration directories on your behalf

Things to look for

1. make sure when you receive return data from Read(). copy the address value to the storage pointer variable and not the address!
2. When any credentials are written, it will be stored in <some_dir>/.ksctl/credentials/{cloud_provider}.json
3. When any clusterState is written, it gets stored in <some_dir>/.ksctl/state/{cloud_provider}/{cluster_type}/{cluster_name} {region}/state.json
4. When you do Switch aka getKubeconfig it fetches the kubeconfig from the point 3 and stores it to <some_dir>/.ksctl/kubeconfig
